DTSB-800

$153.57

Product Information

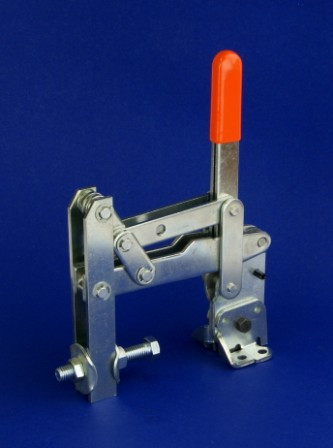

800 lb. capacity Double-Toggle-Vertical hold down clamp. Swivel Base.

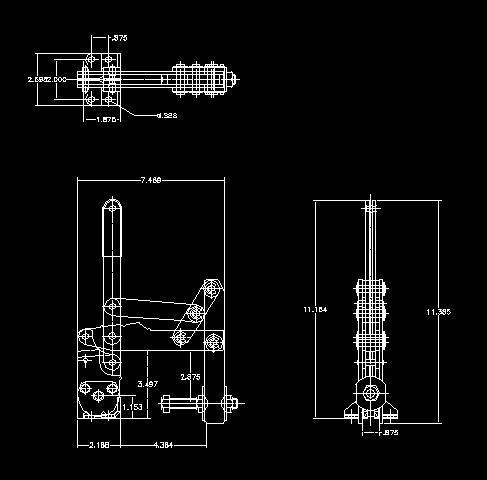

Available Downloads:  2-D Drawings | 3-D STP | 3-D IGS

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specification
Weight: 5.35 lbs 2.43 kg
Holding Capacity: 1200 lbs 5338 N
Holding Capacity 3.13 in end of Toggle Bar: 600 lbs 2669 N
Maximum Clamping Thickness: 4.31 in 109.5 mm
:
Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel
Included 1:Spindle Assembly (W-470078):

Product Code: 80448
