HR-100

$10.62

Product Information

100 lb. capacity Horizontal Hold Down Clamp. Right Hand. Flanged Base. Open Toggle Bar.

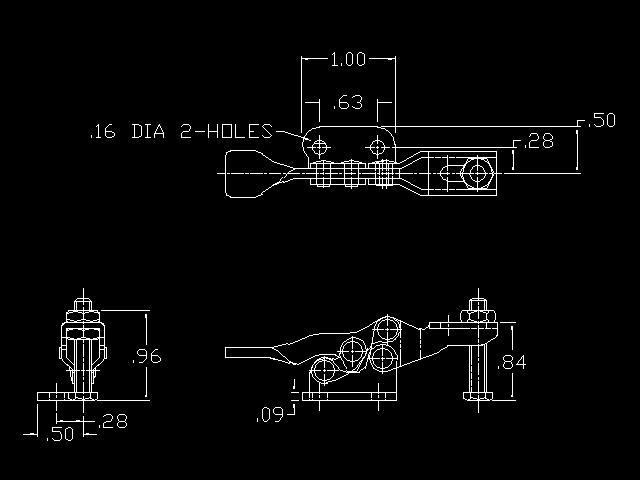

Available Downloads:  2-D Drawings | 3-D Drawings

Specification
Weight: 0.065 lbs 0.029 kg
Holding Capacity: 100 lbs 445 N
Holding Capacity .56 in Front of Base: 150 lbs 667 N
Maximum Clamping Thickness: 0.75 in 19 mm
Throat Depth: 0.88 in 22.23 mm
Also available in Stainless steel (HR-100-SS)
Included 1:Spindle Assembly (470095):

Product Code: 80221
