CAV-2000

$167.48

Product Information

2,000 lb. Capacity Vertical Hold Down Clamp. Cam Action. Flanged Base. Open Toggle Bar.

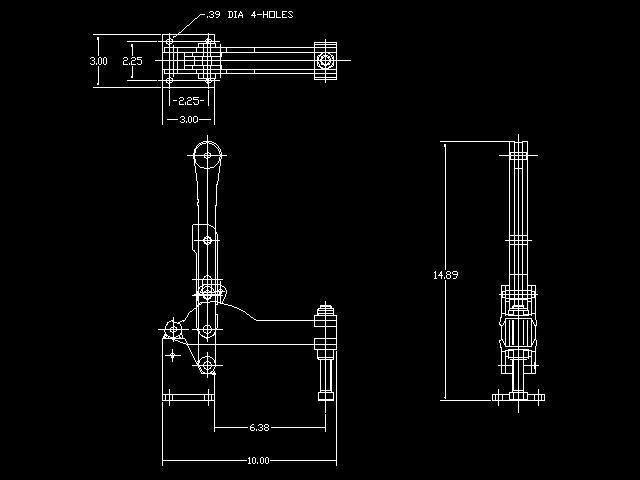

Available Downloads:  2-D Drawings | 3-D Drawings

Specification
Weight: 10.4 lbs 4.72 kg
Holding Capacity: 2000 lbs 8896 N
Holding Capacity 3.25 in Front of Base: 3700 lbs 16458 N
Maximum Clamping Thickness: 3.22 in 81.8 mm
Throat Depth: 6.38 in 161.9 mm
Cam action allows for variations of up to 3/8in in the material being clamped without spindle adjustment
Included 1:Spindle Assembly (W-470078):

Product Code: 80320
