SB-800

$58.04

Product Information

800 lb. capacity vertical hold down clamp. Swivel Base. Open Toggle Bar.

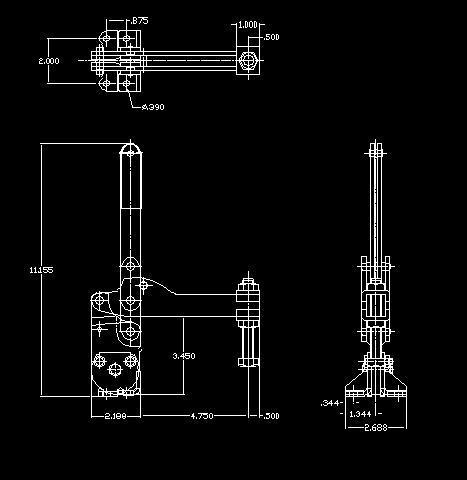

Available Downloads:  2-D Drawings | 3-D Drawings

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specification
Weight: 3.7 lbs 1.68 kg
Holding Capacity: 800 lbs 3559 N
Holding Capacity 2 in Front of Base: 1700 lbs 7562 N
Maximum Clamping Thickness: 2.16 in 54.8 mm
Throat Depth: 4.75 in 120.7 mm
Swivel Base allows clamping angle to be adjusted +/- up to 90degrees from parallel
Included 1:Spindle Assembly (N-470078):

Product Code: 80184
