C-151-A

Product Information

2,500 lb. capacity Push Clamp. Flanged Base. Square Push-rod. Push-rod is drilled and tapped to accept 5/16-18 bolt.

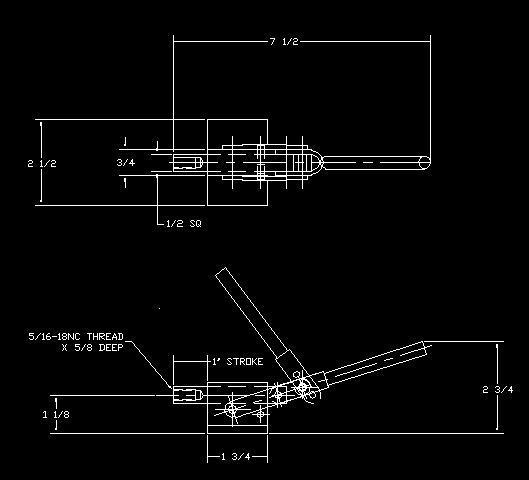

Available Downloads:  2-D Drawings | 3-D Drawings



Specification
Weight: 1.2 lbs 0.55 kg
Holding Capacity: 2500 lbs 11121 N
:
Stroke: 1 in 25.4 mm
Centerline Height: 1.13 in 28.6 mm
Push-rod is drilled and tapped to accept 5/16-18 bolt (sold seperately)

Product Code: C-1VB5K119

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
50+$54.54
250+$50.46
