C-151-AMH

Product Information

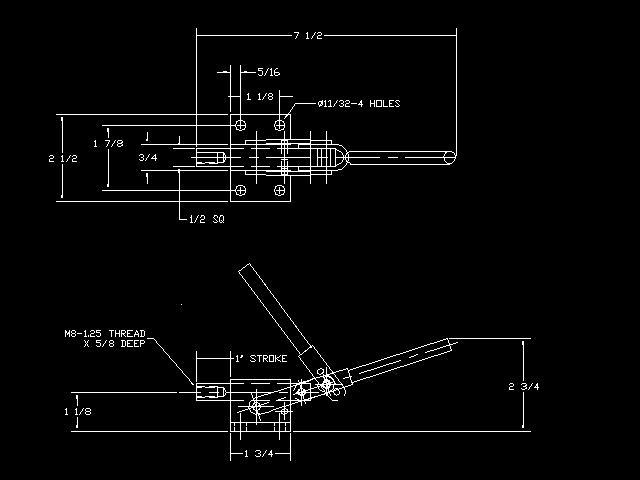

2,500 lb. capacity Push Clamp.  Flanged Base with four mounting holes.  Square Push-rod.  Push-rod is drilled and tapped to accept M8 x 1.25 bolt.

Specification
Weight: 1.2 lbs 0.55 kg
Holding Capacity: 2500 lbs 11121 N
:
Stroke: 1 in 25.4 mm
Centerline Height: 1.13 in 28.6 mm
Push-rod is drilled and tapped to accept M8 x 1.25 bolt.

Product Code: C-13AZC386

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
50+$54.54
250+$50.46
