C-152

Product Information

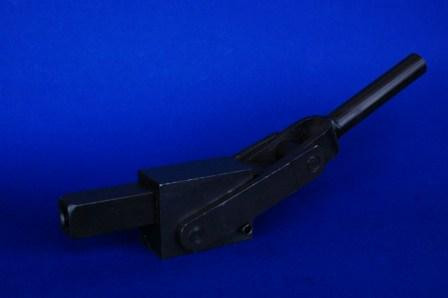

10,000 lb. capacity Push Clamp. Weld Base. Square Push-rod. Push-rod is drilled and tapped to accept 5/8-11 bolt.

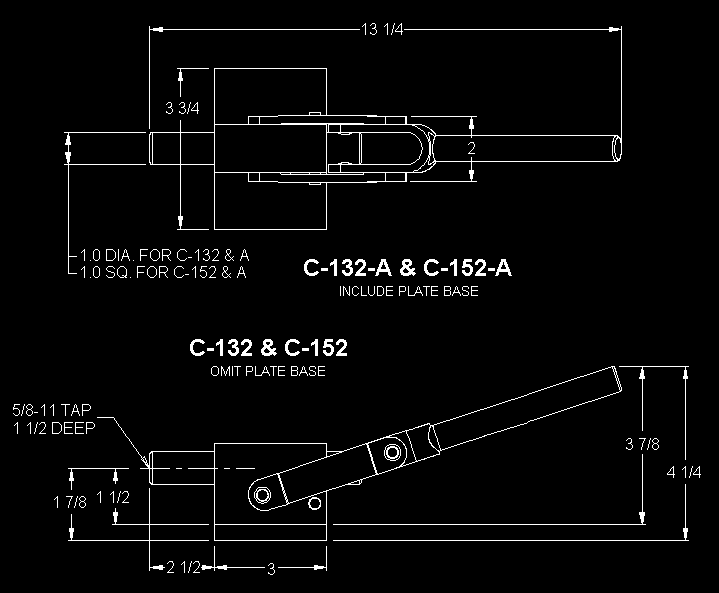

Available Downloads:  2-D Drawings | 3-D Drawings



Specification
Weight: 5.4 lbs 2.44 kg
Holding Capacity: 10000 lbs 44482 N
:
Stroke: 2.5 in 50.8 mm
Centerline Height: 1.5 in 38.1 mm
Push-rod is drilled and tapped to accept 5/8-11 bolt (sold seperately)

Product Code: C-1WZ3HE26

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
50+$113.46
250+$105.00
